Product Details Introduction

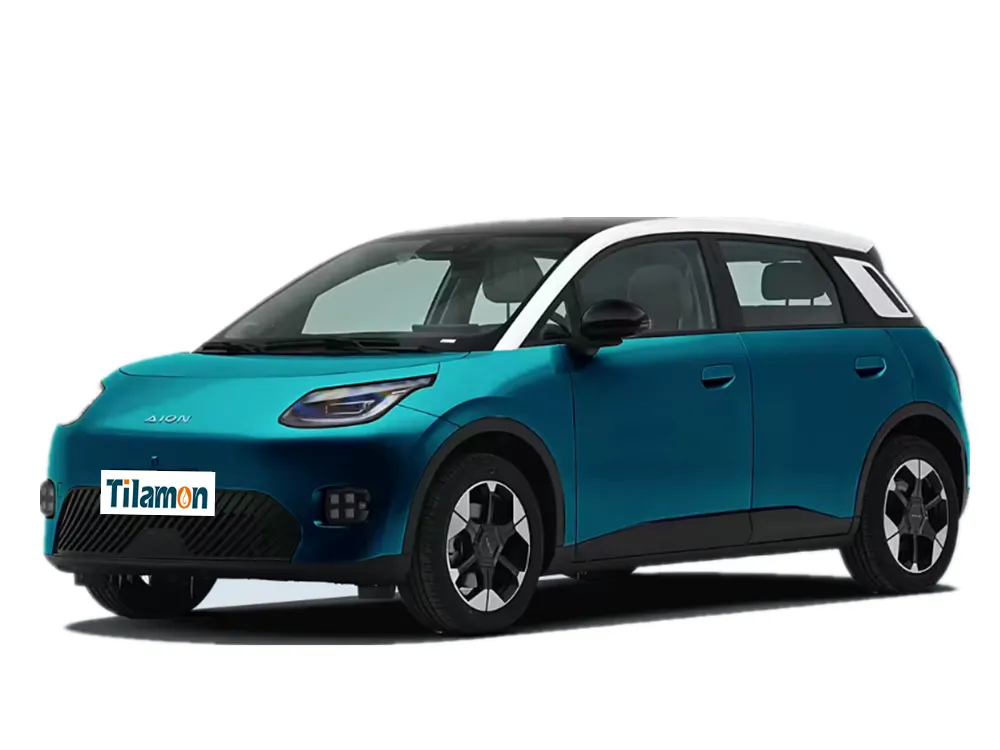

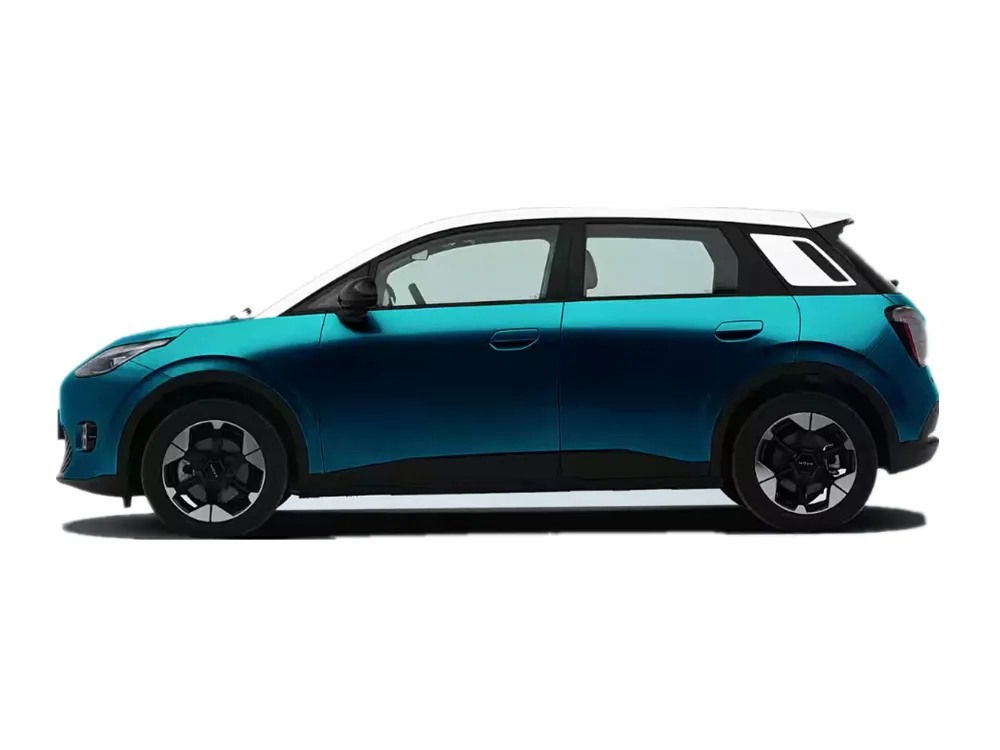

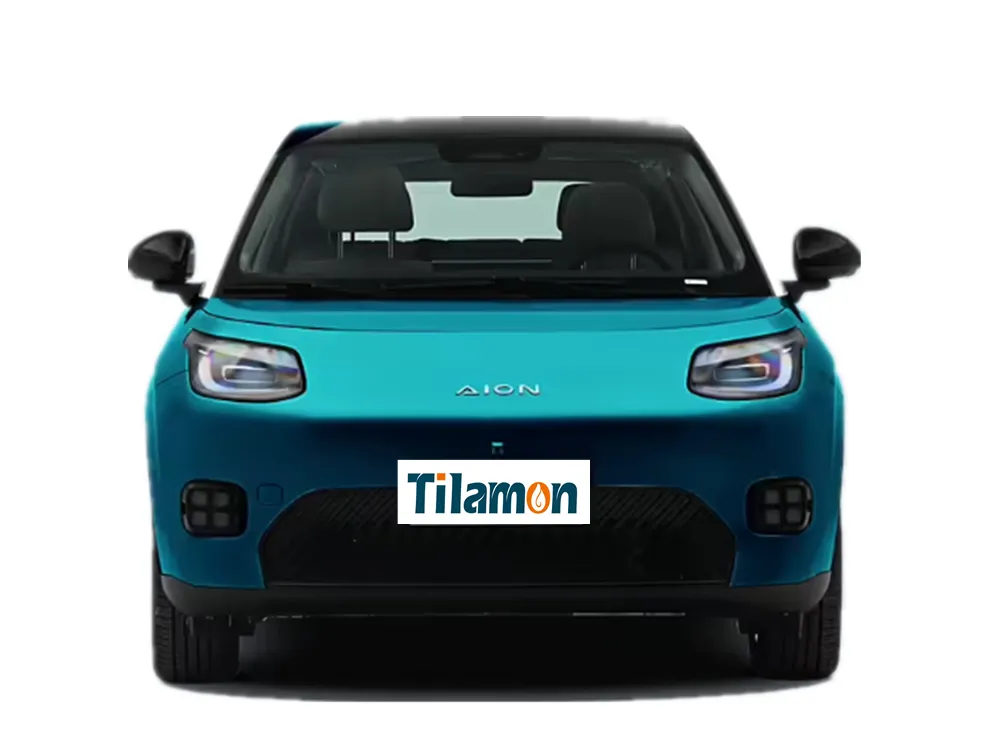

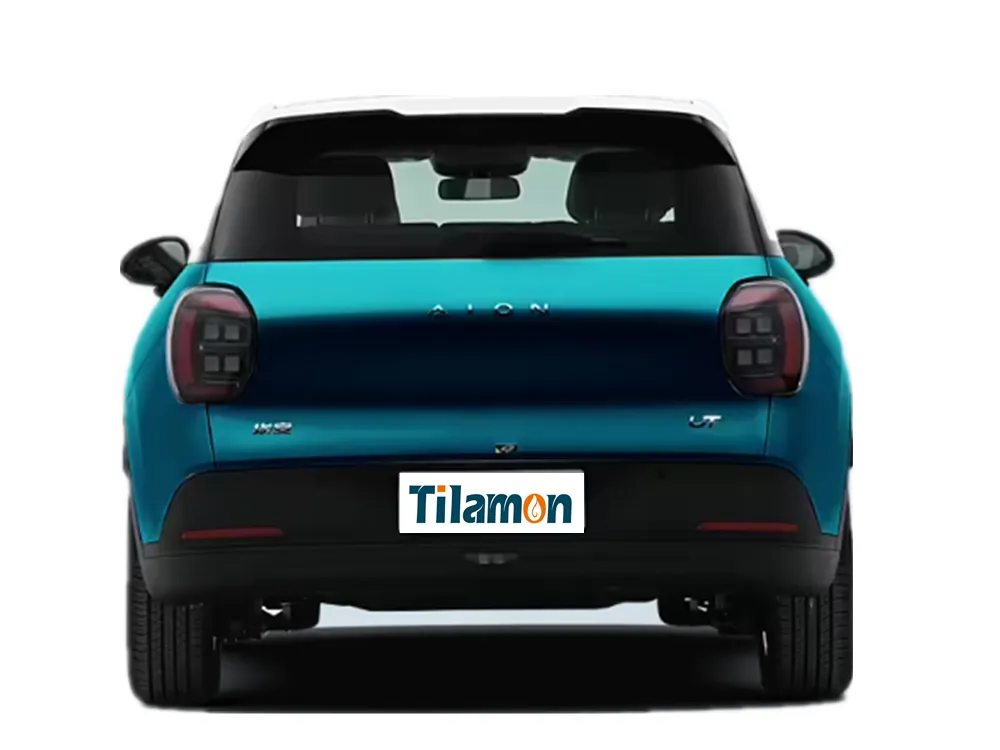

Vehicle appearance：

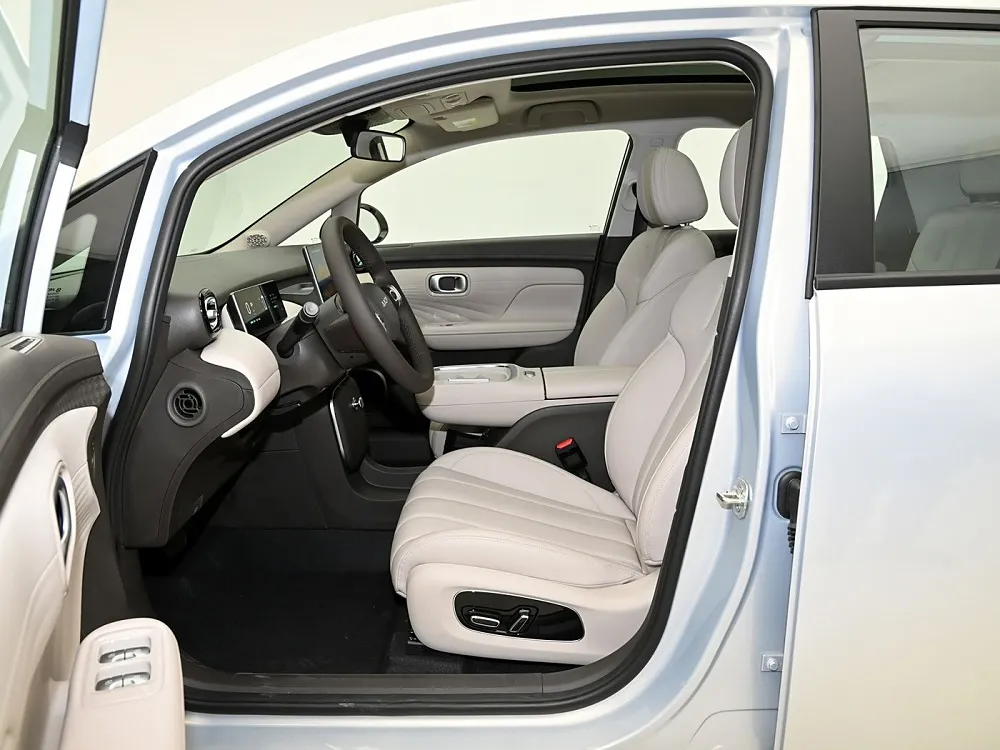

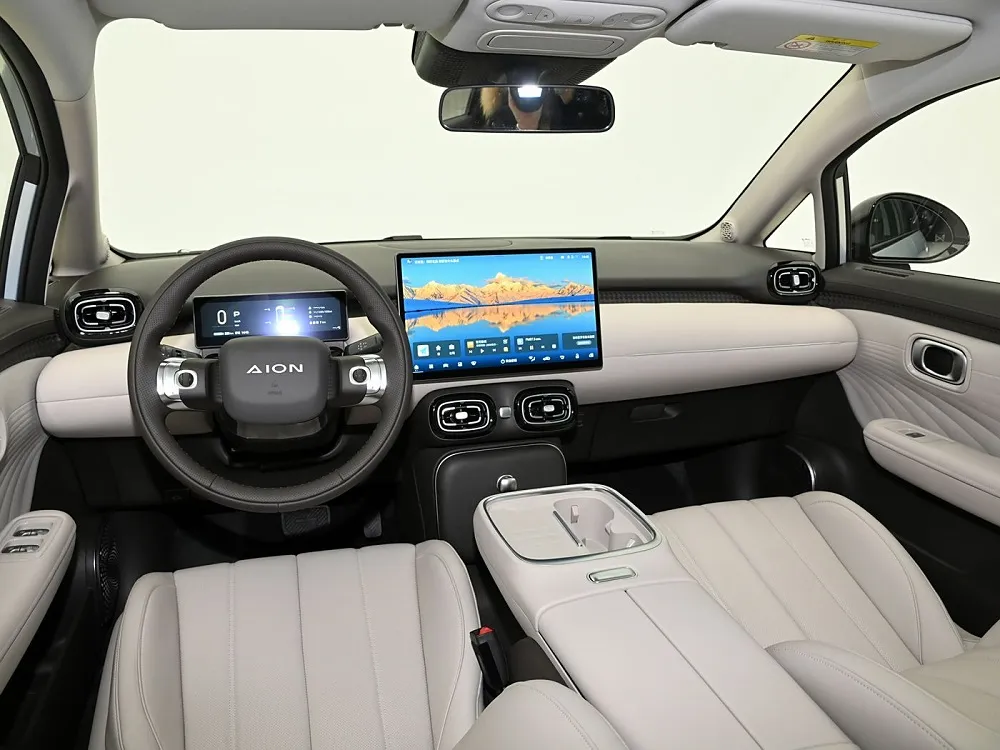

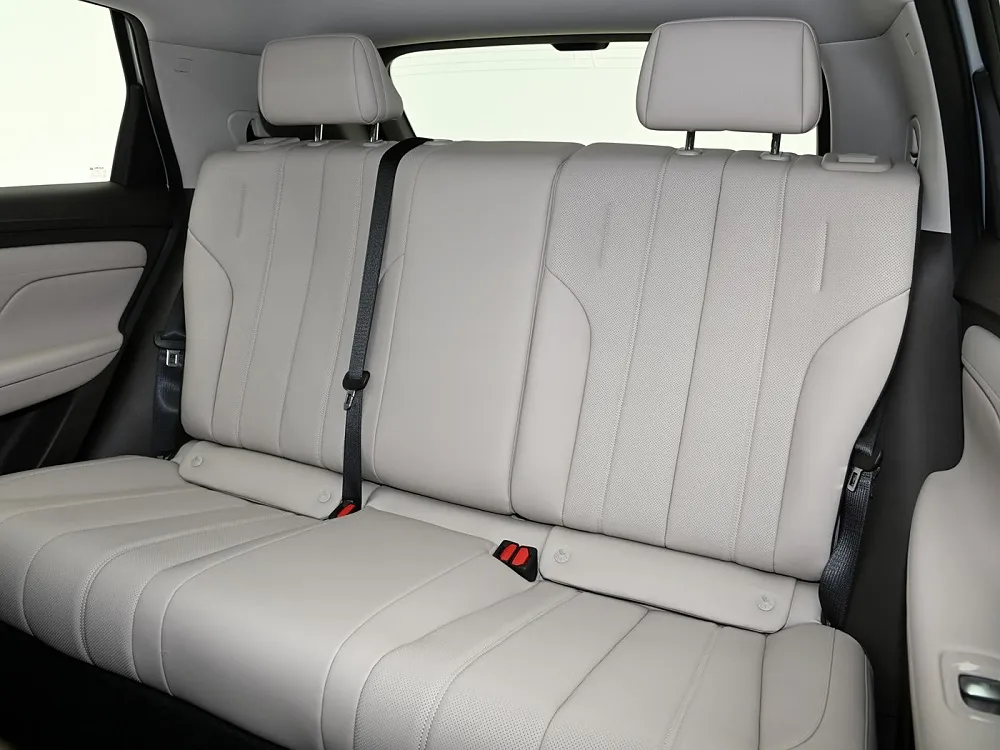

Vehicle interior：
| AION Y 2025 Plus | AION Y 2025 Plus 610 Smart Edition | AION Y 2025 Plus 430 Smart Edition | AION Y 2025 Plus 510 Smart Edition |
| Basic parameters | |||
| Manufacturers | Aion | Aion | Aion |
| level | Compact SUV | Compact SUV | Compact SUV |
| Type of energy | Electric | Electric | Electric |
| Availability | 2025.06 | 2025.06 | 2025.06 |
| CLTC electric range (km) | 610 | 430 | 510 |
| Maximum power (kW) | 150 | 100 | 100 |
| Maximum torque(N路m) | 225 | 176 | 176 |
| Body structure | 5 - door, 5 - seater SUV | 5 - door, 5 - seater SUV | 5 - door, 5 - seater SUV |
| Electric Motor(Ps) | 204 | 136 | 136 |
| LengthWidthHeight(mm) | 4.53519E+11 | 4.53519E+11 | 4.53519E+11 |
| Official 0 - 100km/h acceleration (s) | - | - | - |
| Maximum speed(km/h) | 150 | 150 | 150 |
| Fuel consumption of electric energy equivalent (L/100km) | 1.46 | 1.5 | 1.5 |
| Vehicle warranty | Four years or 150,000 kilometers | Four years or 150,000 kilometers | Four years or 150,000 kilometers |
| Curb weight (kg) | 1740 | 1590 | 1720 |
| Maximum load weight (kg) | 2260 | 2080 | 2180 |
| bodywork | |||
| Length (mm) | 4535 | 4535 | 4535 |
| Width (mm) | 1870 | 1870 | 1870 |
| Height (mm) | 1650 | 1650 | 1650 |
| Wheelbase (mm) | 2750 | 2750 | 2750 |
| Front track(mm) | 1600 | 1600 | 1600 |
| Rear track(mm) | 1600 | 1600 | 1600 |
| Minimum ground clearance at full load (mm) | 150 | 150 | 150 |
| Angle of approach (掳) | 18 | 18 | 18 |
| Departure angle (掳) | 27 | 27 | 27 |
| Maximum Gradeability (%) | 30 | 30 | 30 |
| Maximum Climbing Angle (掳) | 16.7 | 16.7 | 16.7 |
| Minimum turning radius (m) | 5.5 | 5.5 | 5.5 |
| Body structure | SUV | SUV | SUV |
| How the doors open | Swing doors | Swing doors | Swing doors |
| Number of doors | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 |
| Trunk volume (L) | 405 | 405 | 405 |
| Wind Resistance Coefficient (Cd) | - | - | - |
| motor | |||
| Former motor brand | Rupai Power | Suzhou Innovance | Suzhou Innovance |
| Front motor model | TZ180XS127 | TZ180XS130 | TZ180XS130 |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 150 | 100 | 100 |
| Total motor horsepower (Ps) | 204 | 136 | 136 |
| Total torque of electric motor(N路m) | 225 | 176 | 176 |
| Maximum power of front motor (kW) | 150 | 100 | 100 |
| Maximum torque of front motor (N路m) | 225 | 176 | 176 |
| Number of drive motors | Single motor | Single motor | Single motor |
| Motor layout | Front - loaded | Front - loaded | Front - loaded |
| Three - electric system warranty | The lifetime warranty of the three - electric system of non - commercial vehicles (the first owner) does not exceed 30,000 kilometers per year | The lifetime warranty of the three - electric system of non - commercial vehicles (the first owner) does not exceed 30,000 kilometers per year | The lifetime warranty of the three - electric system of non - commercial vehicles (the first owner) does not exceed 30,000 kilometers per year |
| Battery/Charging | |||
| Battery type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Cell brand | Times GAC | EVE PowerInpai battery | Inpai batteryTimes GAC |
| Battery - specific technology | Magazine battery | Magazine battery | Magazine battery |
| Battery cooling method | Liquid cooling | Liquid cooling | Liquid cooling |
| Swap the battery | - | - | - |
| CLTC electric range (km) | 610 | 430 | 510 |
| Battery capacity (kWh) | 68.2 | 49.75 | 58.4/58.9 |
| Electricity consumption per 100km (kWh/100km) | 12.6 | 12.9 | 12.9 |
| Fast charging function | Supported | Supported | Supported |
| Slow charging interface position | Right front side of the vehicle | Right front side of the vehicle | Right front side of the vehicle |
| Fast charging interface position | Left front side of the vehicle | Left front side of the vehicle | Left front side of the vehicle |
| Gearbox | |||
| Abbreviation | Electric vehicle single - speed transmission | Electric vehicle single - speed transmission | Electric vehicle single - speed transmission |
| Number of gears | 1 | 1 | 1 |
| Gearbox type | Fixed gearbox | Fixed gearbox | Fixed gearbox |
| Chassis steering | |||
| Drive mode | Pre - precursor | Pre - precursor | Pre - precursor |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam type non - independent suspension | Torsion beam type non - independent suspension | Torsion beam type non - independent suspension |
| Assist type | Electric power assist | Electric power assist | Electric power assist |
| Body structure | Load - bearing | Load - bearing | Load - bearing |
| Wheel braking | |||
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Disc | Disc | Disc |
| Type of parking brake | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) |
| Rear tire specifications | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) | 215/55 R17215/50 R18 (2000 RMB)225/45 R19 (4500 RMB) |
| Spare tire specifications | Not full size (1000 RMB) | Not full size (1000 RMB) | Not full size (1000 RMB) |
