Product Details Introduction

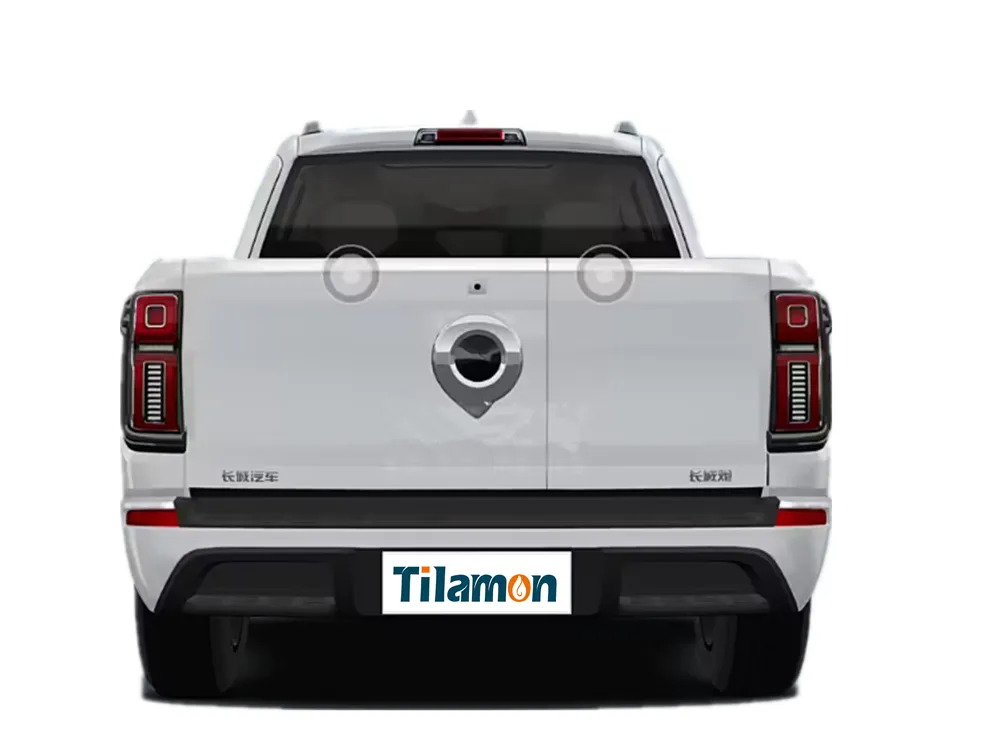

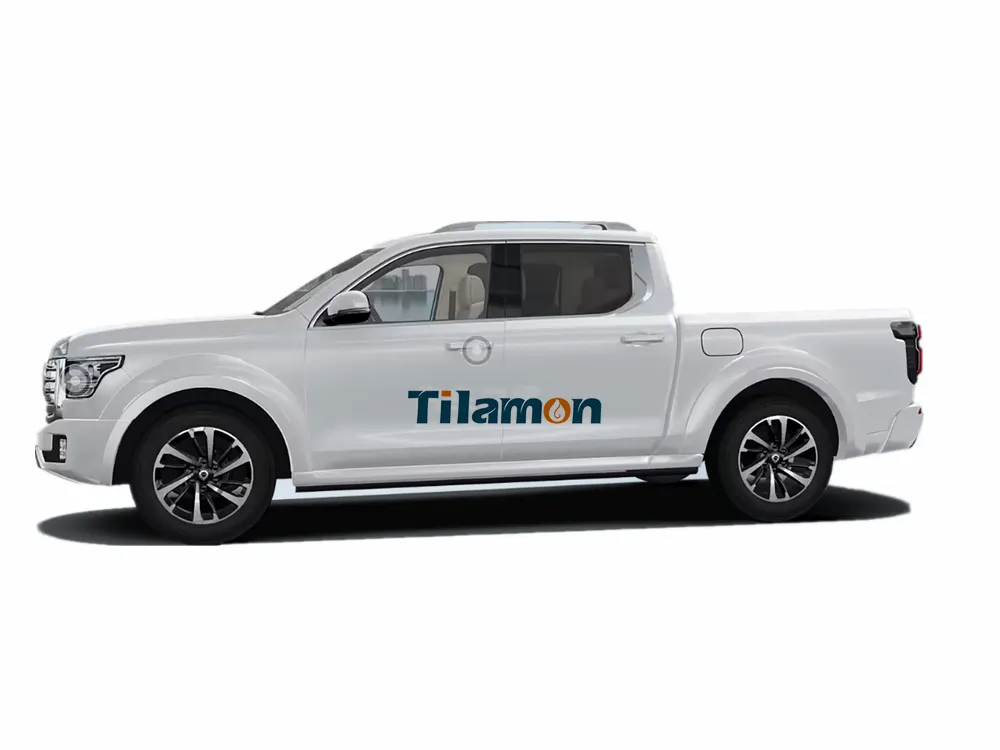

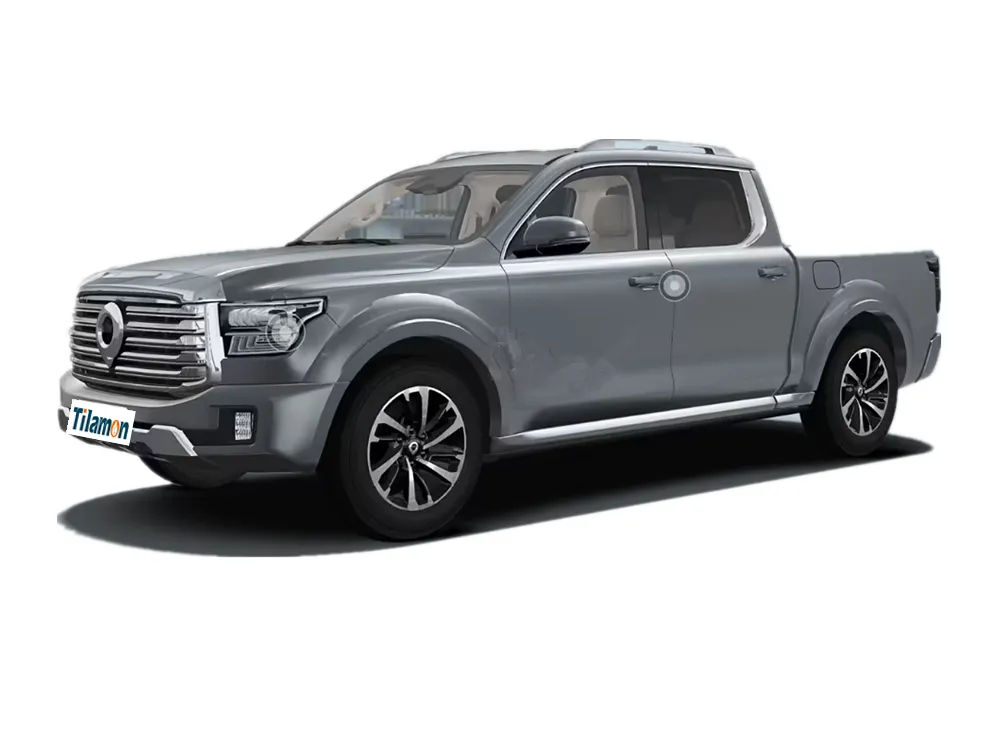

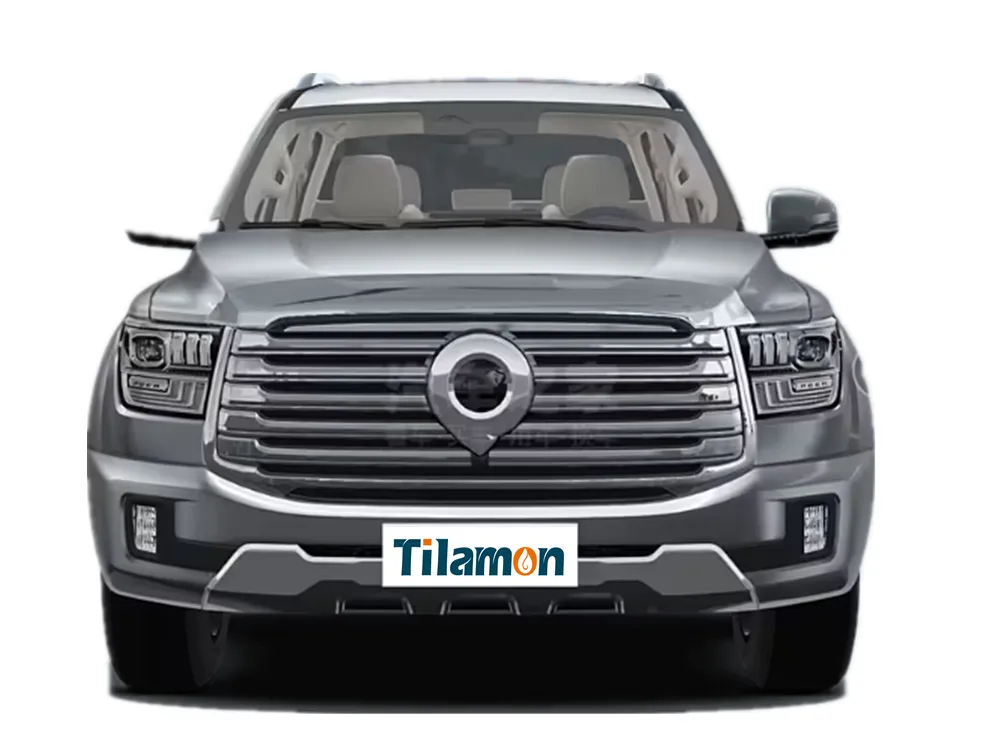

Vehicle appearance:

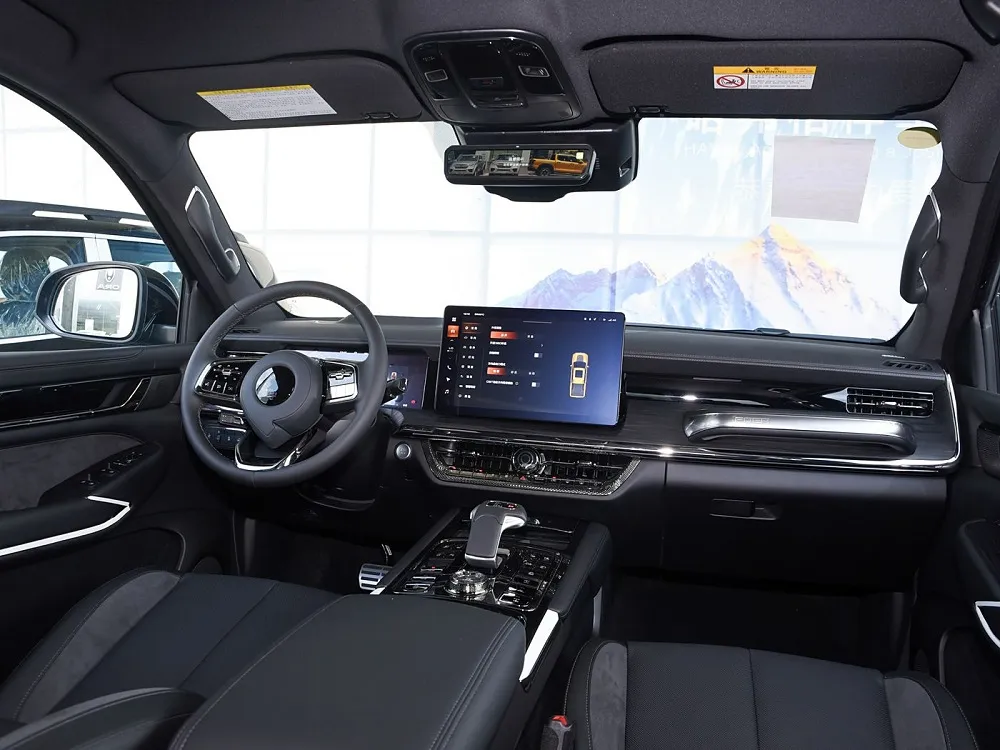

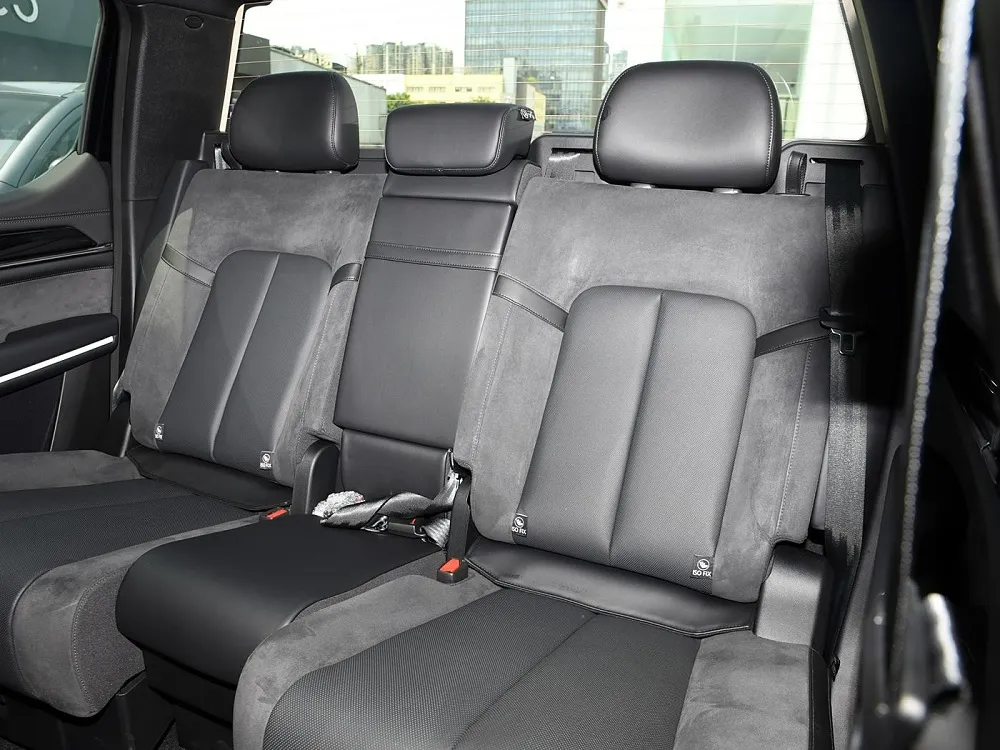

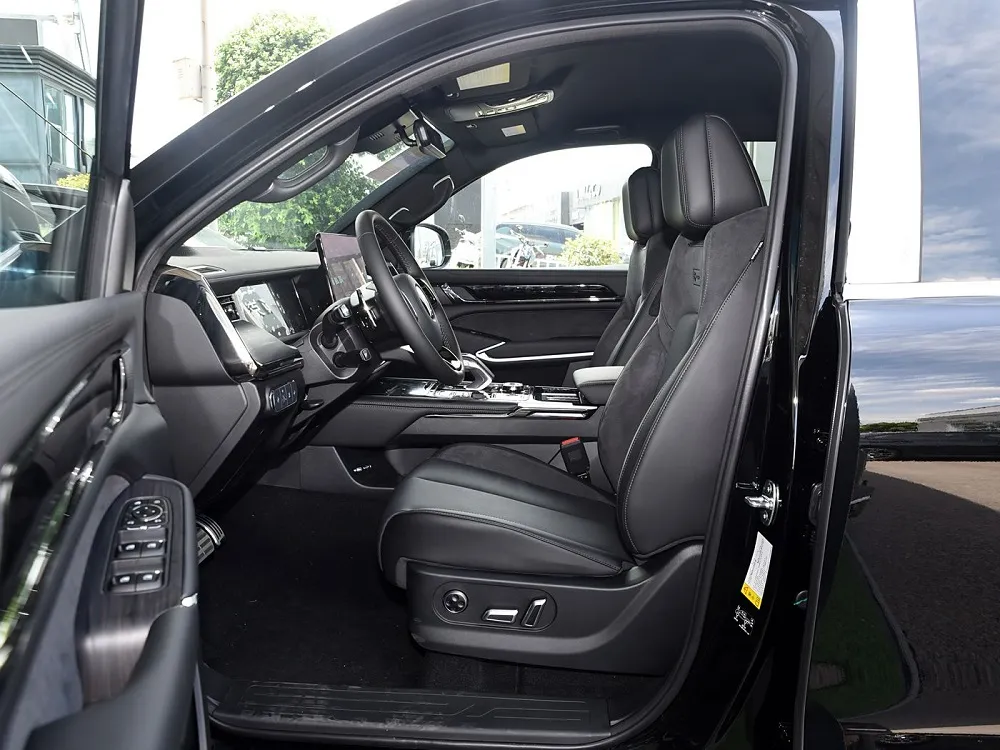

Vehicle interior:
| Shanhai Cannon | Shanhai Cannon 2024 2.4T Diesel Ridetrough Edition | Shanhai Cannon 2023 2.4T Diesel Pole Edition | Shanhai Cannon 2023 2.4T Diesel Pole Tractor Edition |
| Basic parameters | |||
| Manufacturers | Great Wall Motors | Great Wall Motors | Great Wall Motors |
| Level | Pickup | Pickup | Pickup |
| Type of energy | diesel fuel | diesel fuel | diesel fuel |
| Environmental standards | Country Ⅵ | Country Ⅵ | Country Ⅵ |
| Availability | 2024.09 | 2022.12 | 2023.1 |
| Maximum power (kW) | 137 | 137 | 137 |
| Maximum torque(N·m) | 480 | 480 | 480 |
| Gearbox | 9 gears are self-integrated | 9 gears are self-integrated | 9 gears are self-integrated |
| Body structure | Pickup | Pickup | Pickup |
| Motor | 2.4T 186hp L4 | 2.4T 186hp L4 | 2.4T 186hp L4 |
| LengthWidthHeight(mm) | 5.4622E+11 | 5.4402E+11 | 5.4402E+11 |
| Official 0 - 100km/h acceleration (s) | - | - | - |
| Maximum speed(km/h) | 155 | 155 | 155 |
| NEDC combined fuel consumption (L/100km) | 9.3 | 9.3 | 9.3 |
| Vehicle warranty | Four years or 120,000 km | Four years or 120,000 km | Four years or 120,000 km |
| Curb weight (kg) | 2660 | 2575 | 2575 |
| Maximum load weight (kg) | 3420 | 3380 | 3380 |
| Quasi-trailer total mass (kg) | 3300 | - | 3300 |
| Bodywork | |||
| Length (mm) | 5462 | 5440 | 5440 |
| Width (mm) | 1992 | 1991 | 1991 |
| Height (mm) | 1960 | 1924 | 1924 |
| Wheelbase (mm) | 3350 | 3350 | 3350 |
| Front track(mm) | 1626 | 1626 | 1626 |
| Rear track(mm) | 1635 | 1635 | 1635 |
| Minimum ground clearance at full load (mm) | - | 186 | 186 |
| Minimum ground clearance at no load (mm) | 239 | 227 | 227 |
| Angle of approach (°) | 30 | 29 | 29 |
| Departure angle (°) | 28 | 25 | 20 |
| Longitudinal passing angle (°) | - | 19 | 19 |
| Maximum Gradeability (%) | 70 | 70 | 70 |
| Maximum wading depth (mm) | 800 | 800 | 800 |
| Body structure | Pickup | Pickup | Pickup |
| How the doors open | Swing doors | Swing doors | Swing doors |
| Number of doors | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 |
| Fuel Tank Volume(L) | 131 | 78 | 78 |
| Trunk volume (L) | - | - | - |
| Cargo box size(mm) | 1500x1520x500 | 1500x1520x500 | 1500x1520x500 |
| Wind Resistance Coefficient (Cd) | - | - | - |
| Motor | |||
| Engine model | GW4D24 | GW4D24 | GW4D24 |
| Displacement (mL) | 2370 | 2370 | 2370 |
| Displacement(L) | 2.4 | 2.4 | 2.4 |
| Air intake form | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Longitudinal | Longitudinal | Longitudinal |
| Cylinder arrangement | L | L | L |
| Number of cylinders | 4 | 4 | 4 |
| Valves per cylinder (pcs) | 4 | 4 | 4 |
| Valve mechanism | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 186 | 186 | 186 |
| Maximum power (kW) | 137 | 137 | 137 |
| Maximum power speed (rpm) | 3600 | 3600 | 3600 |
| Maximum torque(N·m) | 480 | 480 | 480 |
| Maximum torque speed (rpm) | 1500 - 2500 | 1500 - 2500 | 1500 - 2500 |
| Maximum net power(kW) | 135 | 135 | 135 |
| Engine-specific technology | Variable geometry turbine | Variable geometry turbine | Variable geometry turbine |
| Type of energy | diesel fuel | diesel fuel | diesel fuel |
| Fuel designation | Number 0 | Number 0 | Number 0 |
| Fuel supply method | Direct injection | Direct injection | Direct injection |
| Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Cylinder block material | cast iron | cast iron | cast iron |
| Environmental standards | Country Ⅵ | Country Ⅵ | Country Ⅵ |
| Gearbox | |||
| Abbreviation | 9 gears are self-integrated | 9 gears are self-integrated | 9 gears are self-integrated |
| Number of gears | 9 | 9 | 9 |
| Gearbox type | Automatic Manual Transmission (AMT) | Automatic Manual Transmission (AMT) | Automatic Manual Transmission (AMT) |
| Chassis steering | |||
| Drive mode | Front-mounted four-wheel drive | Front-mounted four-wheel drive | Front-mounted four-wheel drive |
| Four-wheel drive form | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
| Central differential structure | Multi-plate clutch | Multi-plate clutch | Multi-plate clutch |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Integral axle non-independent suspension | Integral axle non-independent suspension | Integral axle non-independent suspension |
| Assist type | Electric power assist | Electric power assist | Electric power assist |
| Body structure | Non-load-bearing | Non-load-bearing | Non-load-bearing |
| Wheel braking | |||
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Type of parking brake | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 265/65 R18 | 265/60 R18 | 265/60 R18 |
| Rear tire specifications | 265/65 R18 | 265/60 R18 | 265/60 R18 |
