Product Details Introduction

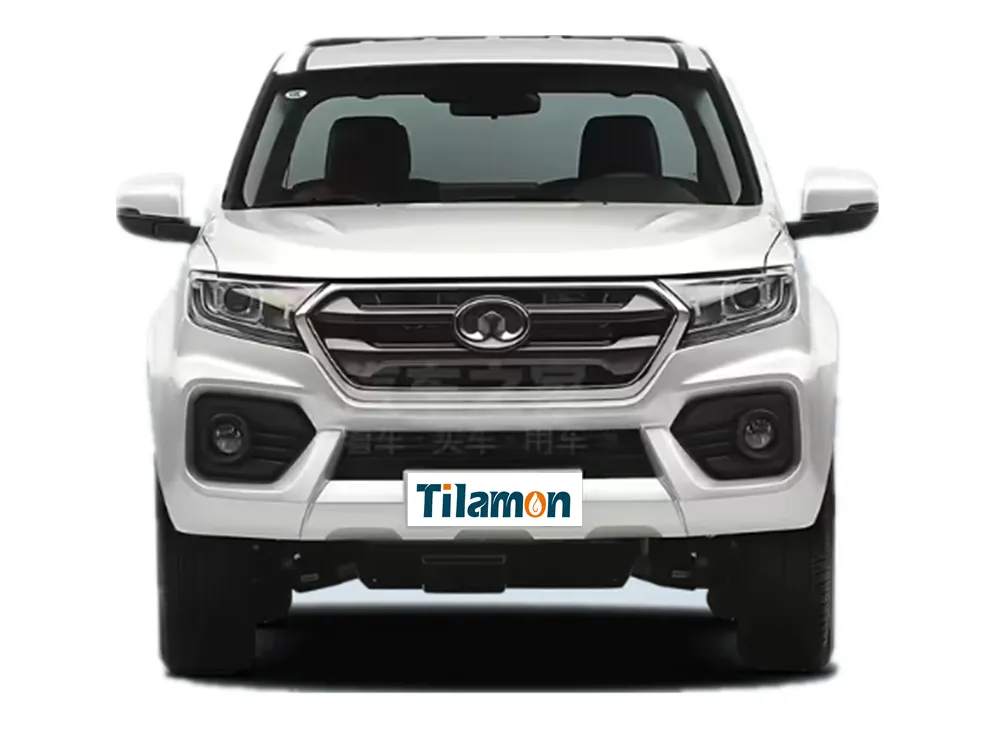

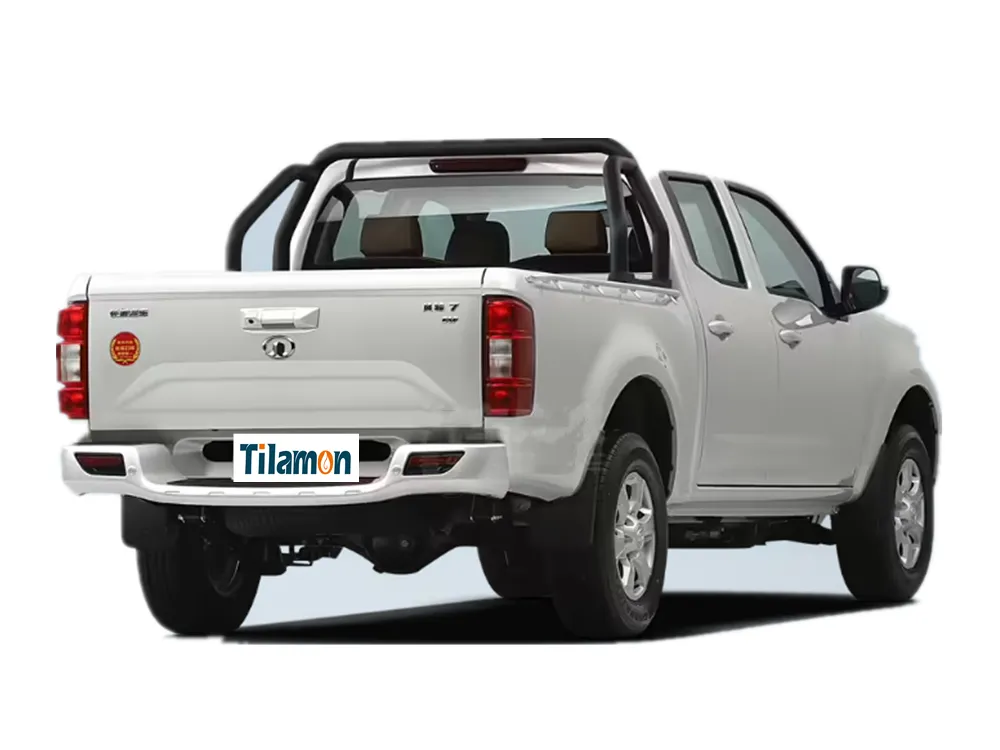

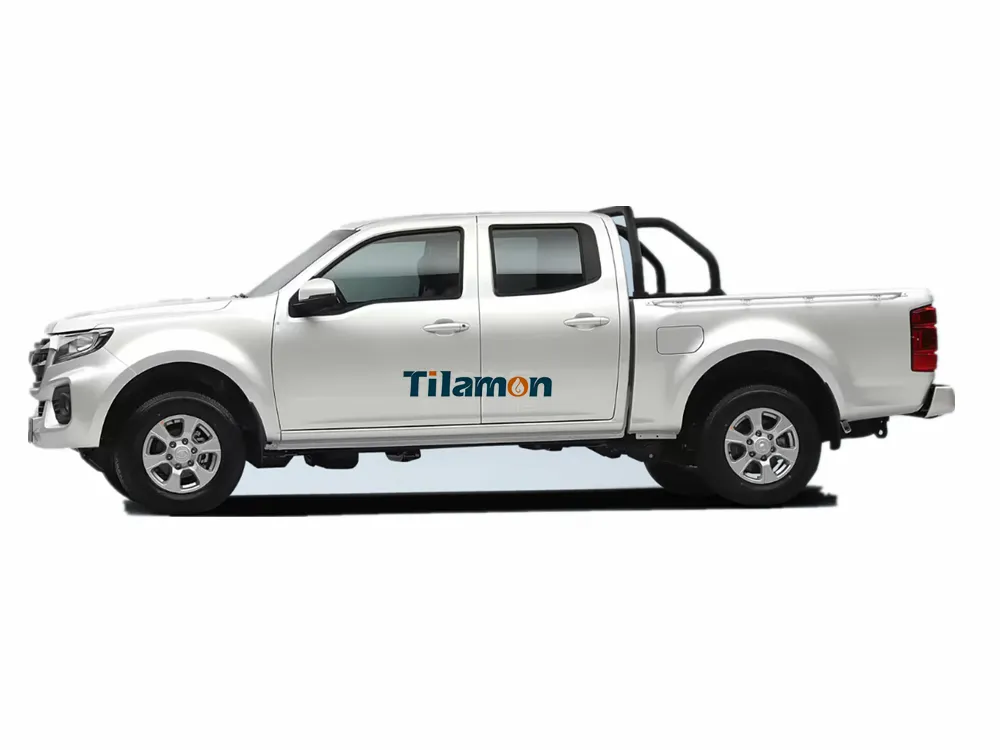

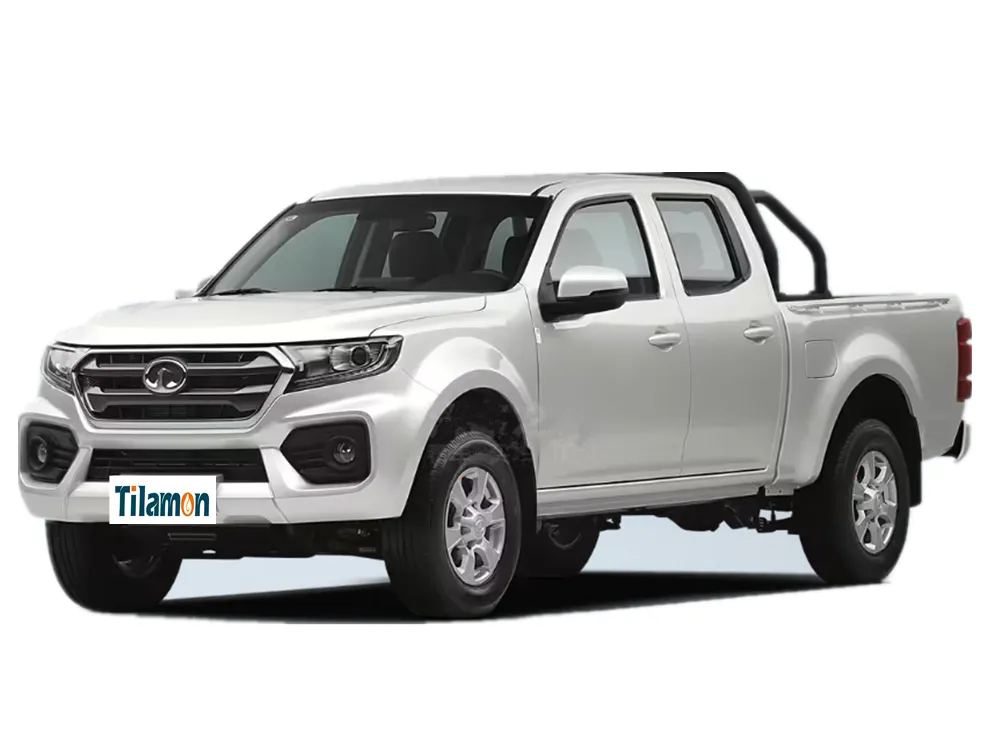

Vehicle appearance：
Vehicle appearance：
| Wingle 7 | Wingle 7 2023 2.0T gasoline two - wheel drive aggressive large double GW4C20B | Wingle 7 2023 2.0T gasoline four - wheel drive elite large double GW4C20B | Wingle 7 2023 2.0T gasoline two - wheel drive aggressive large double GW4C20B |
| Basic parameters | |||
| Manufacturers | Great Wall Motors | Great Wall Motors | Great Wall Motors |
| level | Pickup | Pickup | Pickup |
| Type of energy | gasoline | gasoline | gasoline |
| Availability | 2023.05 | 2023.05 | 2023.05 |
| Maximum power (kW) | 125 | 125 | 125 |
| Maximum torque(N·m) | 335 | 335 | 335 |
| Gearbox | 6 - speed manual | 6 - speed manual | 6 - speed manual |
| Body structure | Pickup | Pickup | Pickup |
| motor | 2.0T 170 hp L4 | 2.0T 170 hp L4 | 2.0T 170 hp L4 |
| LengthWidthHeight(mm) | 5.42518E+11 | 5.42518E+11 | 5.42518E+11 |
| Official 0 - 100km/h acceleration (s) | - | - | - |
| Maximum speed(km/h) | 160 | 160 | 160 |
| NEDC combined fuel consumption (L/100km) | 8.6 | 8.6 | 8.9 |
| Vehicle warranty | - | - | - |
| Curb weight (kg) | 1750 | 1750 | 1850 |
| Maximum load weight (kg) | 2555 | 2555 | 2555 |
| bodywork | |||
| Length (mm) | 5425 | 5425 | 5425 |
| Width (mm) | 1800 | 1800 | 1800 |
| Height (mm) | 1740 | 1760 | 1740 |
| Wheelbase (mm) | 3350 | 3350 | 3350 |
| Front track(mm) | 1515 | 1515 | 1515 |
| Rear track(mm) | 1525 | 1525 | 1525 |
| Angle of approach (°) | 29 | 29 | 29 |
| Departure angle (°) | 23 | 23 | 23 |
| Body structure | Pickup | Pickup | Pickup |
| How the doors open | Swing doors | Swing doors | Swing doors |
| Number of doors | ● 4 | ● 4 | ● 4 |
| Number of seats | ● 5 | ● 5 | ● 5 |
| Trunk volume (L) | - | - | - |
| Cargo box size(mm) | 1680x1460x480 | 1680x1460x480 | 1680x1460x480 |
| Wind Resistance Coefficient (Cd) | - | - | - |
| motor | |||
| Engine model | GW4C20B | GW4C20B | GW4C20B |
| Displacement (mL) | 1967 | 1967 | 1967 |
| Displacement(L) | 2 | 2 | 2 |
| Air intake form | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Longitudinal | Longitudinal | Longitudinal |
| Cylinder arrangement | L | L | L |
| Number of cylinders | 4 | 4 | 4 |
| Valves per cylinder (pcs) | 4 | 4 | 4 |
| Valve mechanism | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 170 | 170 | 170 |
| Maximum power (kW) | 125 | 125 | 125 |
| Maximum power speed (rpm) | 4000 - 5500 | 4000 - 5500 | 4000 - 5500 |
| Maximum torque(N·m) | 335 | 335 | 335 |
| Maximum torque speed (rpm) | 2600 - 3300 | 2600 - 3300 | 2600 - 3300 |
| Maximum net power(kW) | 120 | 120 | 120 |
| Type of energy | gasoline | gasoline | gasoline |
| Fuel designation | - | - | - |
| Fuel supply method | - | - | - |
| Cylinder head material | - | - | - |
| Cylinder block material | - | - | - |
| Gearbox | |||
| abbreviation | 6 - speed manual | 6 - speed manual | 6 - speed manual |
| Number of gears | 6 | 6 | 6 |
| Gearbox type | Manual Transmission (MT) | Manual Transmission (MT) | Manual Transmission (MT) |
| Chassis steering | |||
| Drive mode | ● Front and rear wheel drive | ● Front and rear wheel drive | ● Front - mounted four - wheel drive |
| Front suspension type | ● Double wishbone torsion bar spring independent suspension | ● Double wishbone torsion bar spring independent suspension | ● Double wishbone torsion bar spring independent suspension |
| Rear suspension type | ● Leaf spring non - independent suspension | ● Leaf spring non - independent suspension | ● Leaf spring non - independent suspension |
| Assist type | ● Hydraulically assisted | ● Hydraulically assisted | ● Hydraulically assisted |
| Body structure | Non - load - bearing | Non - load - bearing | Non - load - bearing |
| Wheel braking | |||
| Front brake type | ● Ventilated disc type | ● Ventilated disc type | ● Ventilated disc type |
| Rear brake type | ● Drum pose | ● Drum pose | ● Drum pose |
| Type of parking brake | - | - | - |
| Front tire specifications | ● 235/70 R16 | ● 235/70 R16 | ● 235/70 R16 |
| Rear tire specifications | ● 235/70 R16 | ● 235/70 R16 | ● 235/70 R16 |
| Spare tire specifications | - | - | - |
