Product Details Introduction

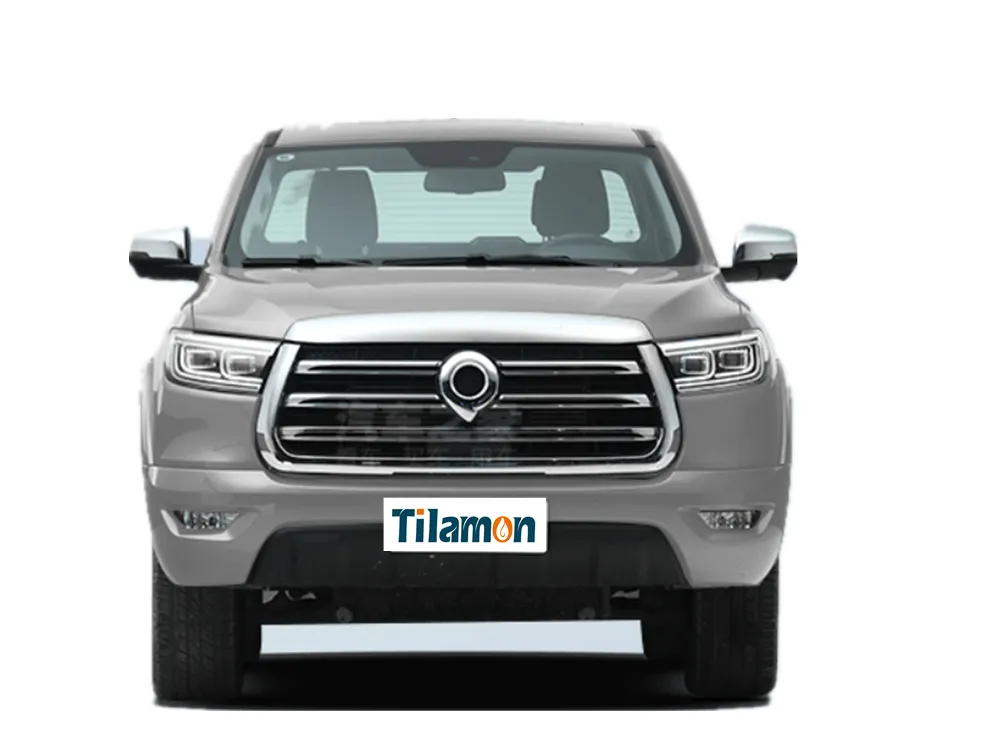

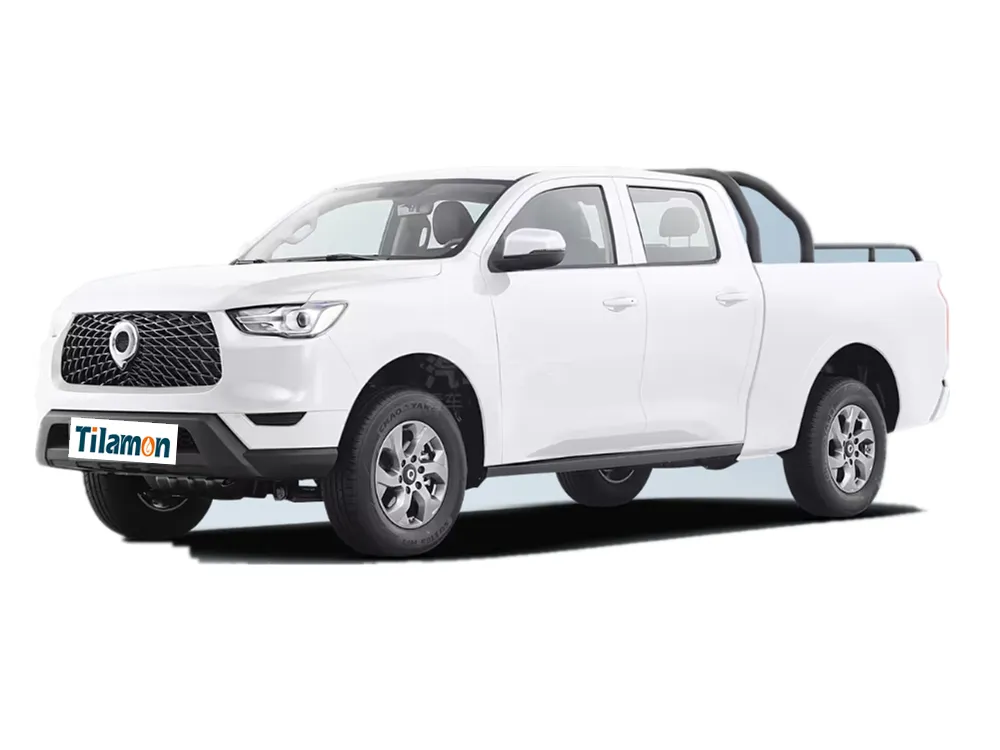

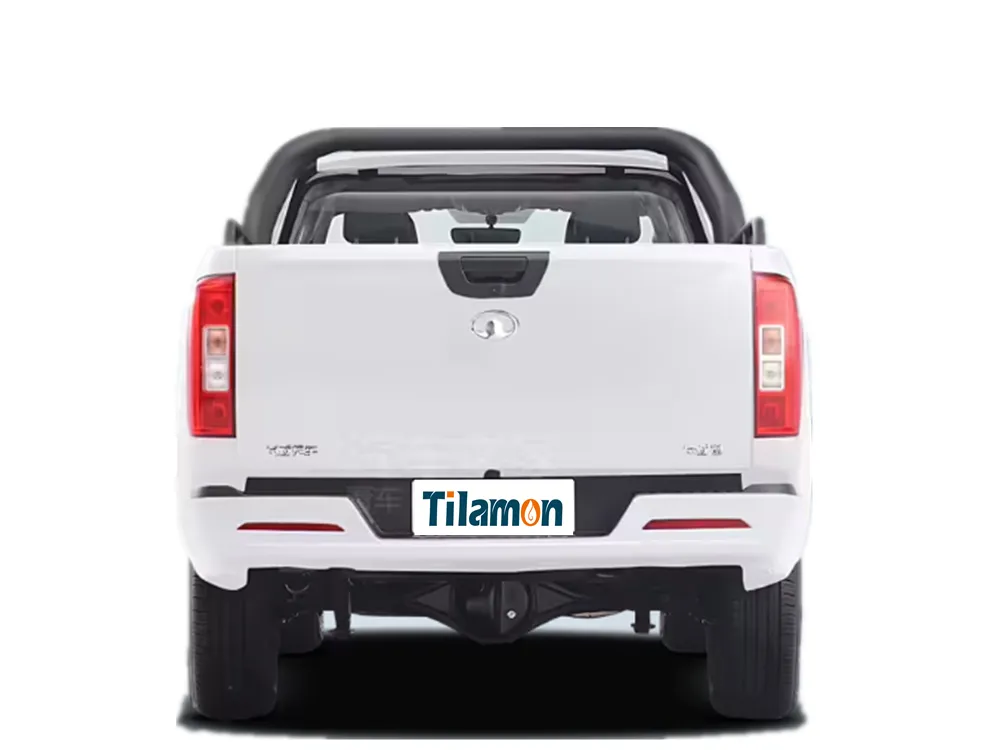

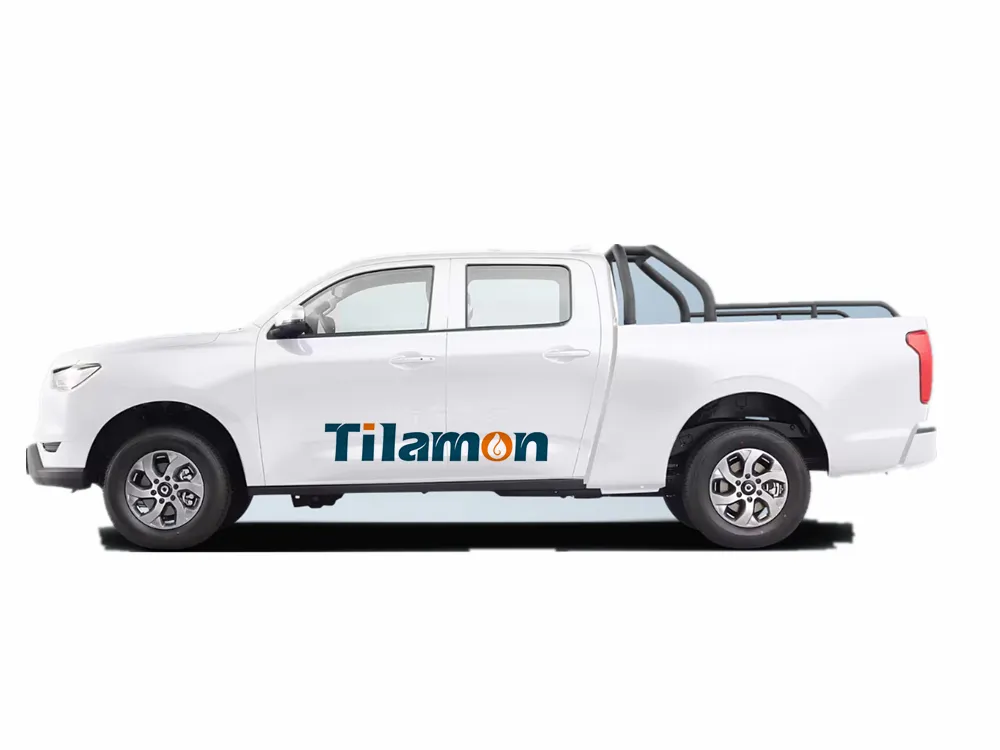

Vehicle appearance

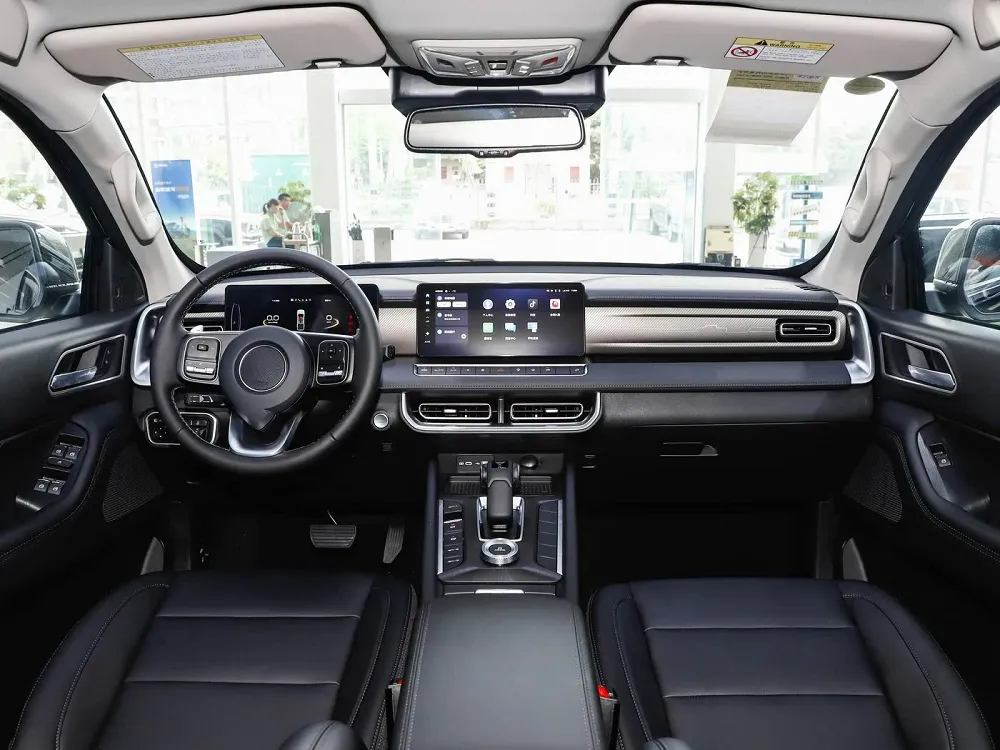

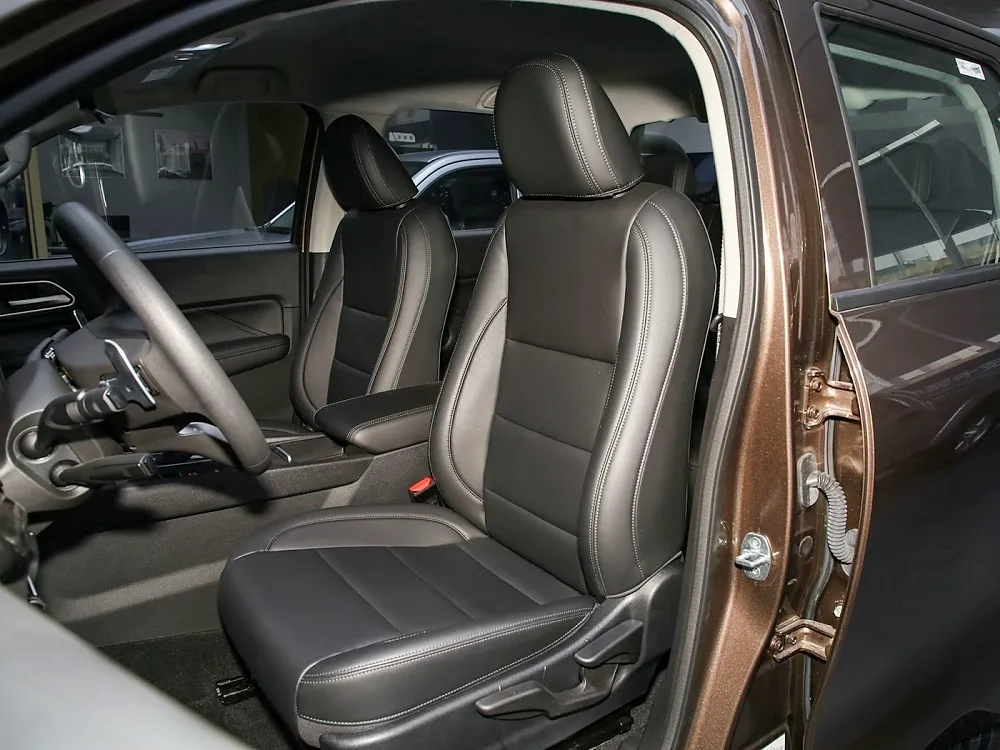

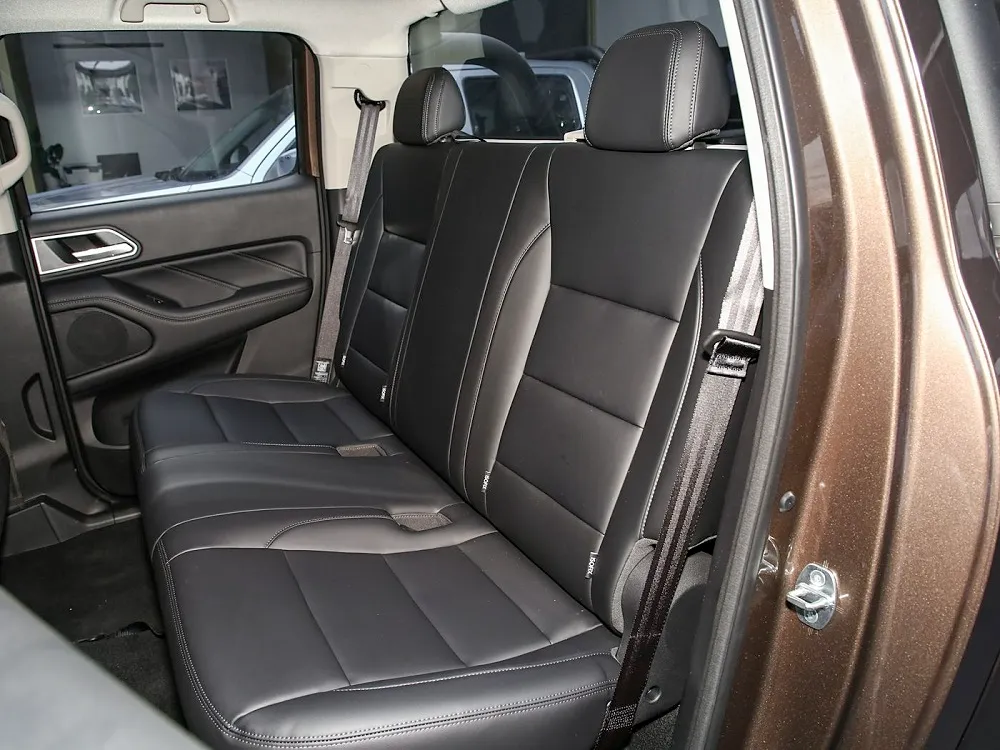

Vehicle interior:
| Cannon | Cannon 2025 2.0T Commercial Gun Automatic Diesel 4WD Comfort | Cannon 2025 2.0T Commercial Gun Automatic diesel four-wheel drive | Cannon 2025 2.0T Passenger Gun Automatic Gasoline 4WD Pilot Type |
| Basic parameters | |||
| Manufacturers | Great Wall Motors | Great Wall Motors | Great Wall Motors |
| Level | Pickup | Pickup | Pickup |
| Type of energy | diesel fuel | diesel fuel | gasoline |
| Environmental standards | Country Ⅵ | Country Ⅵ | Country Ⅵ |
| Availability | 2025.04 | 2025.04 | 2025.04 |
| Maximum power (kW) | 122 | 122 | 140 |
| Maximum torque(N·m) | 400 | 400 | 360 |
| Gearbox | 8 gears are self-integrated | 8 gears are self-integrated | 8 gears are self-integrated |
| Body structure | Pickup | Pickup | Pickup |
| Motor | 2.0T 166hp L4 | 2.0T 166hp L4 | 2.0T 190hp L4 |
| LengthWidthHeight(mm) | 5.65319E+11 | 5.65319E+11 | 5.41619E+11 |
| Official 0 - 100km/h acceleration (s) | - | - | - |
| Maximum speed(km/h) | 160 | 160 | 168 |
| NEDC combined fuel consumption (L/100km) | - | - | - |
| WLTC combined fuel consumption (L/100km) | - | - | - |
| Vehicle warranty | Five years or 200,000 km | Five years or 200,000 km | Five years or 200,000 km |
| Curb weight (kg) | - | - | - |
| Maximum load weight (kg) | - | - | - |
| Quasi-trailer total mass (kg) | - | - | - |
| Bodywork | |||
| Length (mm) | 5653 | 5653 | 5416 |
| Width (mm) | 1883 | 1883 | 1947 |
| Height (mm) | 1882 | 1866 | 1886 |
| Wheelbase (mm) | 3470 | 3470 | 3230 |
| Front track(mm) | 1580 | 1580 | 1608 |
| Rear track(mm) | 1580 | 1580 | 1608 |
| Minimum ground clearance at no load (mm) | - | - | - |
| Minimum ground clearance (mm) | - | - | - |
| Angle of approach (°) | 27 | 27 | 27 |
| Departure angle (°) | 25 | 25 | 25 |
| Longitudinal passing angle (°) | - | - | - |
| Maximum Gradeability (%) | - | - | - |
| Maximum Climbing Angle (°) | - | - | - |
| Minimum turning radius (m) | - | - | - |
| Maximum wading depth (mm) | - | - | - |
| Body structure | Pickup | Pickup | Pickup |
| How the doors open | Swing doors | Swing doors | Swing doors |
| Number of doors | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 |
| Fuel Tank Volume(L) | - | - | - |
| Trunk volume (L) | - | - | - |
| Cargo box size(mm) | 1760x1520x540 | 1760x1520x1050 | 1520x1520x540 |
| Wind Resistance Coefficient (Cd) | - | - | - |
| Rear door opening method | Swing doors | Swing doors | Swing doors |
| Maximum load weight (kg) | - | - | 480 |
| Motor | |||
| Engine model | GW4D20M | GW4D20M | GW4C20B |
| Displacement (mL) | 1996 | 1996 | 1967 |
| Displacement(L) | 2 | 2 | 2 |
| Air intake form | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Longitudinal | Longitudinal | Longitudinal |
| Cylinder arrangement | L | L | L |
| Number of cylinders | 4 | 4 | 4 |
| Valves per cylinder (pcs) | 4 | 4 | 4 |
| Compression ratio | - | - | - |
| Valve mechanism | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 166 | 166 | 190 |
| Maximum power (kW) | 122 | 122 | 140 |
| Maximum power speed (rpm) | 3600 | 3600 | 4000 - 5500 |
| Maximum torque(N·m) | 400 | 400 | 360 |
| Maximum torque speed (rpm) | 1400 - 2600 | 1400 - 2600 | 1800 - 3600 |
| Maximum net power(kW) | 120 | 120 | 140 |
| Type of energy | diesel fuel | diesel fuel | gasoline |
| Fuel designation | Number 0 | Number 0 | Number 92 |
| Fuel supply method | Direct injection | Direct injection | Direct injection |
| Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Cylinder block material | cast iron | cast iron | cast iron |
| Environmental standards | Country Ⅵ | Country Ⅵ | Country Ⅵ |
| Gearbox | |||
| Abbreviation | 8 gears are self-integrated | 8 gears are self-integrated | 8 gears are self-integrated |
| Number of gears | 8 | 8 | 8 |
| Gearbox type | Automatic Manual Transmission (AT) | Automatic Manual Transmission (AT) | Automatic Manual Transmission (AT) |
| Chassis steering | |||
| Drive mode | Front-mounted four-wheel drive | Front-mounted four-wheel drive | Front-mounted four-wheel drive |
| Four-wheel drive form | Time-sharing four-wheel drive | Time-sharing four-wheel drive | Timely four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Leaf spring non-independent suspension | Leaf spring non-independent suspension | Multi-link non-independent suspension |
| Assist type | Hydraulically assisted | Hydraulically assisted | Electric power assist |
| Body structure | Non-load-bearing | Non-load-bearing | Non-load-bearing |
| Wheel braking | |||
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Type of parking brake | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 245/70 R17 | 245/70 R17 | 265/60 R18 |
| Rear tire specifications | 245/70 R17 | 245/70 R17 | 265/60 R18 |
| Spare tire specifications | Full size | Full size | Full size |
| Spare tire placement | Bottom-mounted | Bottom-mounted | Bottom-mounted |
